Products

VUBA DIN SERIES

Hose Burst Valves, Hydraulic Inline Valves

VUBA DIN Series Hose Burst Valves (DIN 2353)

Port sizes: From BSP 3/8’’ to BSP 1/2’’
Max. flow: From 50 liter/min up to 80 liter/min
Max. pressure: 350 bar

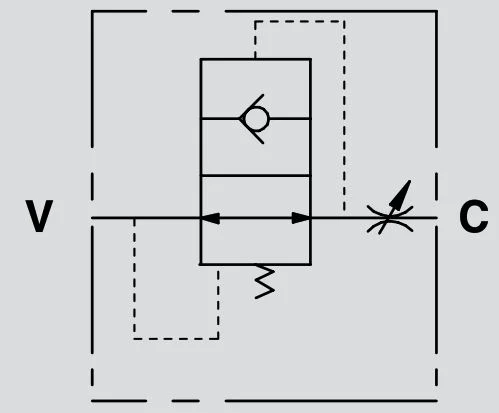

Hose Burst Valves or Velocity Fuses are used to prevent the uncontrolled descent of a load in the event of a hose failure. When the flow exceeds the valve setting (reaction flow), the valve will block the flow. These valves are not load holding or unidirectional restrictors. A flow control valve is recommended downstream of the valve.

Code	Type	Max. flow liter/min	Max. pressure bar
V0784	VUBA 3/8” DIN T10L	50	350
V0786	VUBA 3/8” DIN T12L	50	350
V0787	VUBA 3/8” DIN T15L	50	350
V0794	VUBA 1/2” DIN T15L	80	350
