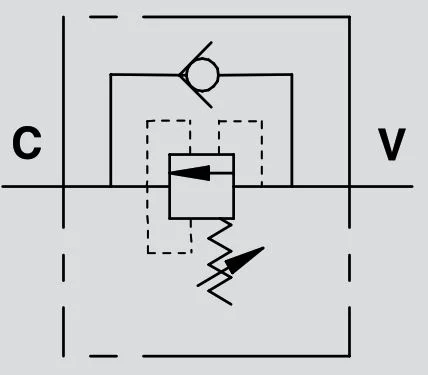

Sequence valve is used to feed 2 cylinders in sequence: it provides flow to the secondary circuit when a primary circuit function has been completed reaching the pressure setting. Return flow is free.
It is ideal when second cylinder operates under low pressure. VSQAPP series are not affected by the back pressure and therefore it allows the circuit pressure to be used by both circuits.
| Code | Type | Max. flow liter/min |
Max. pressure bar |
|---|---|---|---|
| V0642 | VSQAPP 3/8” | 35 | 350 |
| V0662 | VSQAPP 1/2” | 70 | 350 |
| V0667 | VSQAPP 3/4” | 110 | 400 |
