Hydraulic Inline Valves, Sequence Valves

VS2C Series Sequence Valves

Port size: From BSP 3/8’’ to BSP 3/4’’
Max. flow: From 35 liter/min up to 110 liter/min
Max. pressure: 350 bar
Standard pressure setting range is 30-180 bar, valves are set at 90 bar. Please contact us for different setting ranges.

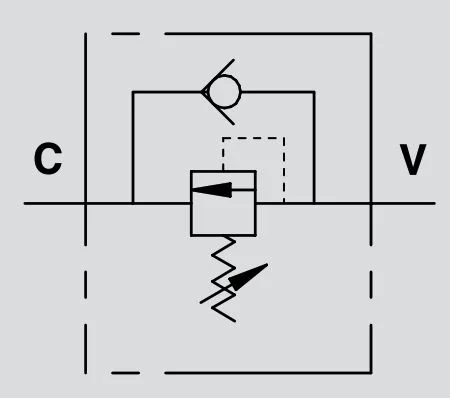

Sequence valve is used to feed 2 cylinders in sequence: it provides flow to the secondary circuit when a primary circuit function has been completed reaching the pressure setting. Return flow is free.

It is ideal when second cylinder operates under low pressure.
