Flow Control Valves, Hydraulic Inline Valves
VRFU 90 Flow Regulator Valves with Check
Port sizes: From BSP 1/4’’ to BSP 1’’
Max. flow: From 15 liter/min up to 110 liter/min
Max. pressure: From 300 bar up to 350 bar
Cracking pressure: 0.5 bar

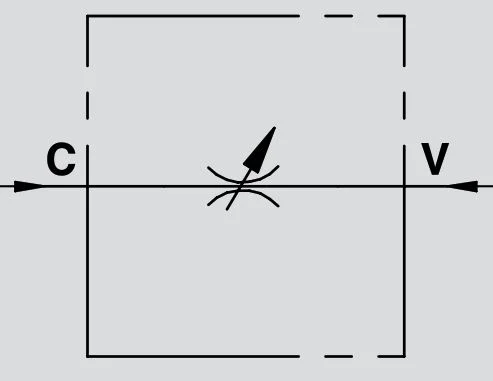

VRFU 90 series flow regulator valves are used to adjust flow speed of actuators in one direction; flow is free in the reverse one. They have integrated check valves.
As pressure compensation is not provided, flow adjustment depends on pressure and fluid viscosity.
They can be used on single acting cylinders to adjust return flow.
|
Code |
Type |
Max. flow |
Max. pressure |
Standard cracking pressure |
|
V0581 |
VRFU 90 1/4” |
15 |
350 |
0.5 |
|
V0582 |
VRFU 90 3/8” |
30 |
350 |
0.5 |
|
V0583 |
VRFU 90 1/2” |
50 |
350 |
0.5 |
|
V0588 |
VRFU 90 3/4” |
80 |
320 |
0.5 |
|
V0576 |
VRFU 90 1” |
110 |
300 |
0.5 |
