Check Valves, Hydraulic Inline Valves
VRC Series Check Valves
Port sizes: BSP 3/8’’ and BSP 1/2’’
Max. flow: From 35 liter/min up to 55 liter/min
Max. pressure: 350 bar
A check valve is the simplest type of directional control valve used in hydraulic systems. Check valves stop the flow of fluid in one direction and allow free flow in the opposite direction. They are also known as non-return valves.

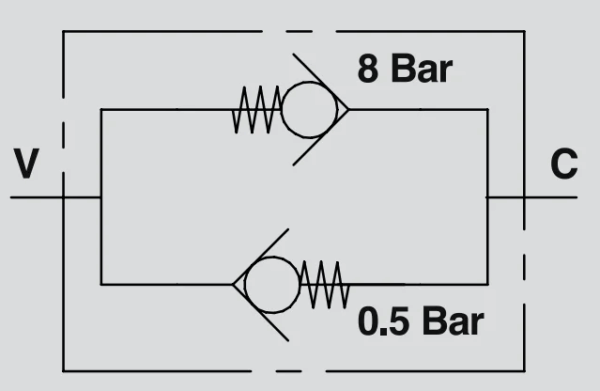

In VRC series check valves, flow is controlled in both directions at different pressure setting.
|
Code |
Type |
Max. flow |
Max. pressure |
Standard cracking pressure |
|
V0606 |
VRC 3/8″ |
35 |
350 |
0.5 & 8 |
|
V0616 |
VRC 1/2″ |
55 |
350 |
0.5 & 8 |
