Flow Dividers, Hydraulic Inline Valves
V-EQ Series Flow Dividers
Max. flow: From 3 liter/min up to 80 liter/min
Rated pressure: 250 bar
DESCRIPTION

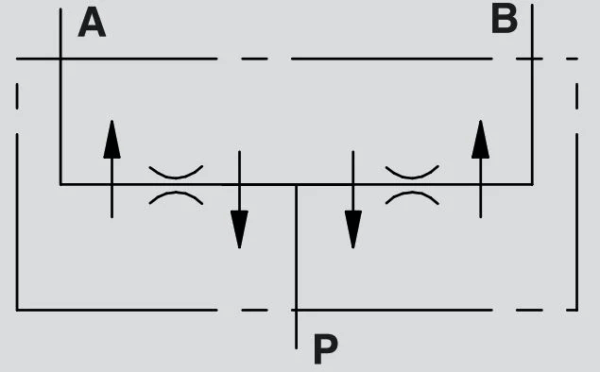

These valves divide the flow around % 50-50 and are used in the systems which fed from the same pump and operates two cylinders (not mechanically connected) that work simultaneously. Body material is cast iron
|
Code |
Type |
Min. flow* |
Max. flow* |
Working pressure |
|
V1001 |
V-EQ 8 |
1 |
3 |
250 |
|
V1000 |
V-EQ 10 |
3 |
6 |
250 |
|
V1002 |
V-EQ 15 |
6 |
10 |
250 |
|
V1003 |
V-EQ 20 |
10 |
20 |
250 |
|
V1004 |
V-EQ 22 |
20 |
32 |
250 |
|
V1005 |
V-EQ 25 |
25 |
40 |
250 |
|
V1006 |
V-EQ 30 |
40 |
60 |
250 |
|
V1007 |
V-EQ 50 |
60 |
80 |
250 |
|
* Flow capacity values refer to input P |
||||
All original manufacturer’s names, part numbers and description are for reference purposes only and it does not imply that any Part listed is the product of these manufacturers
