Directional Control Valves

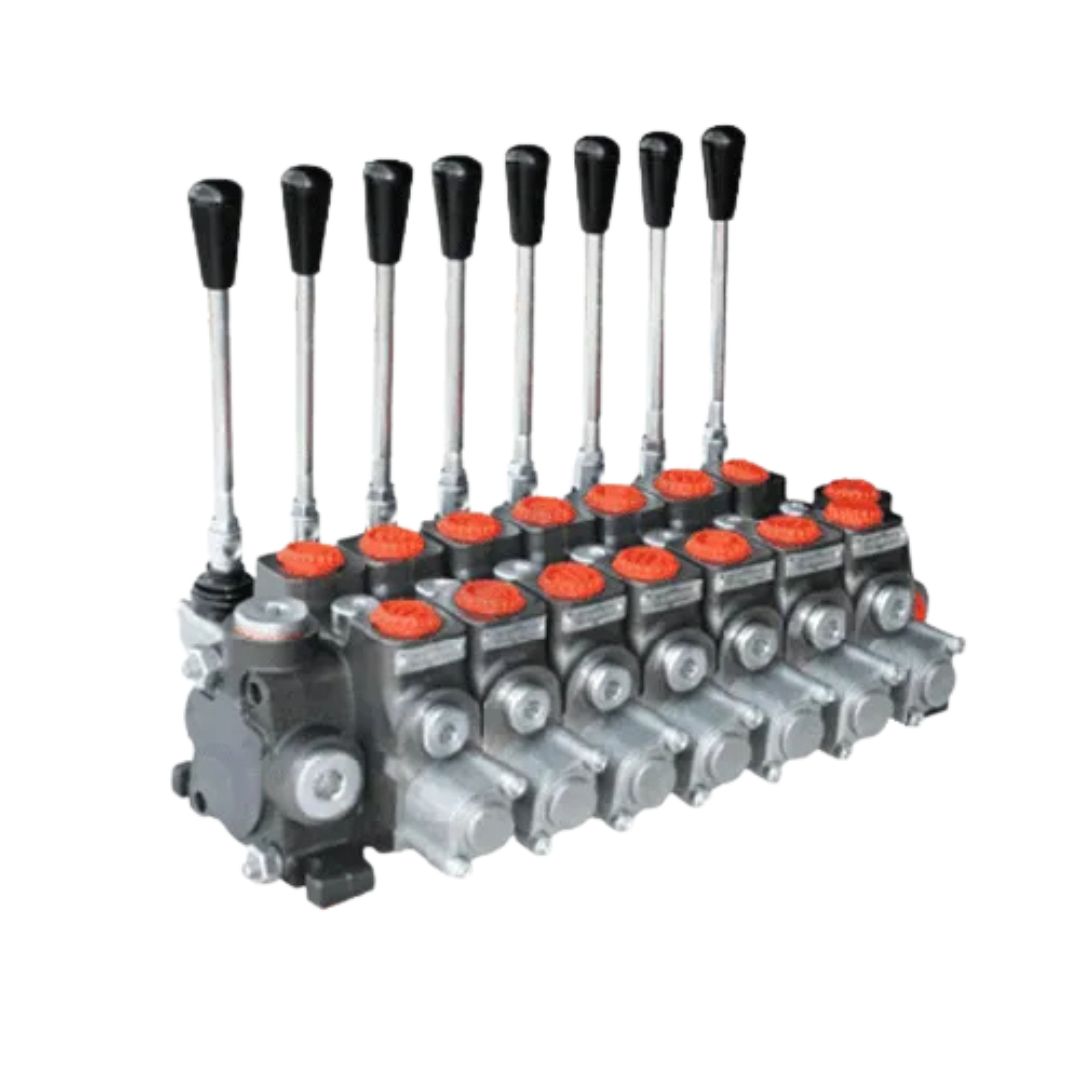

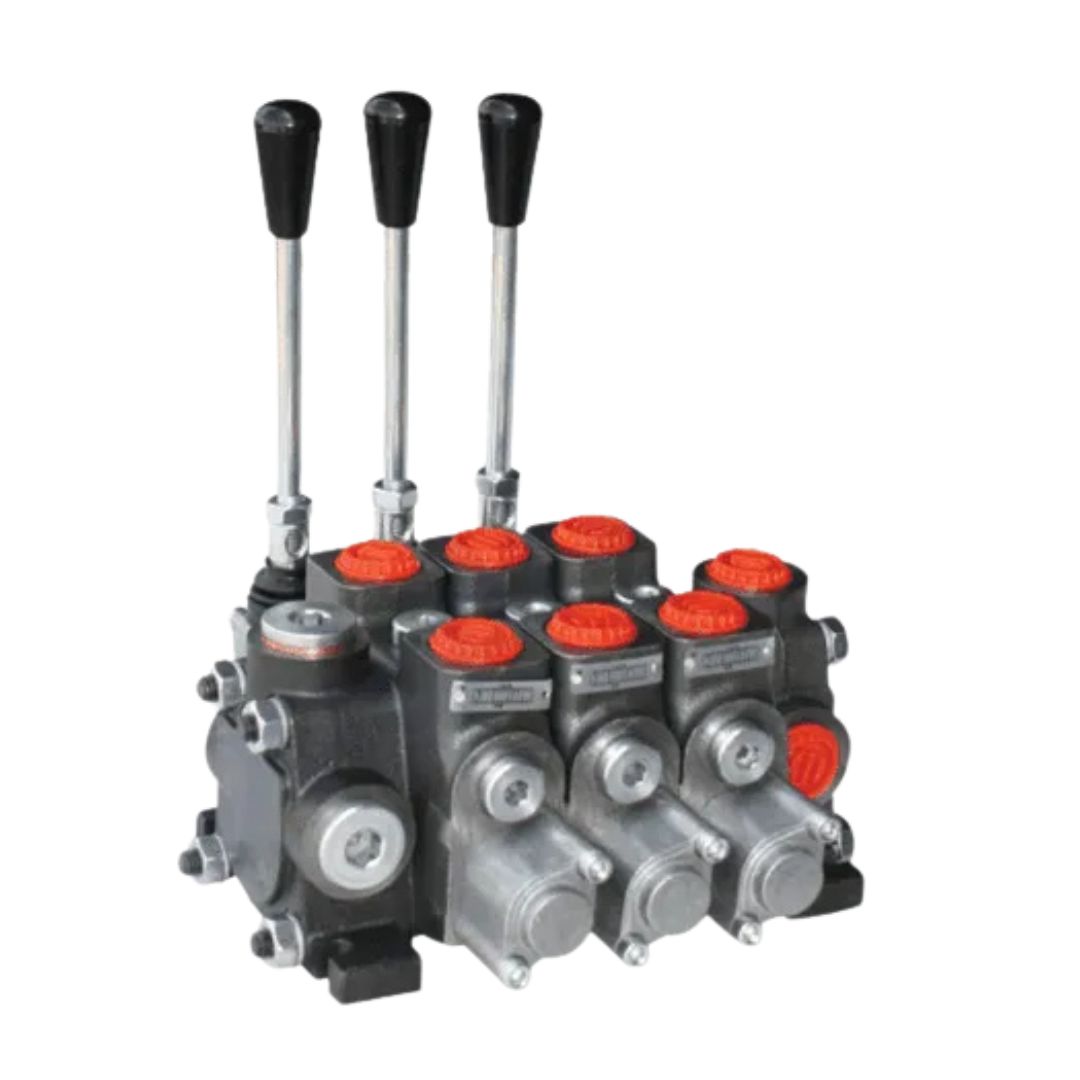

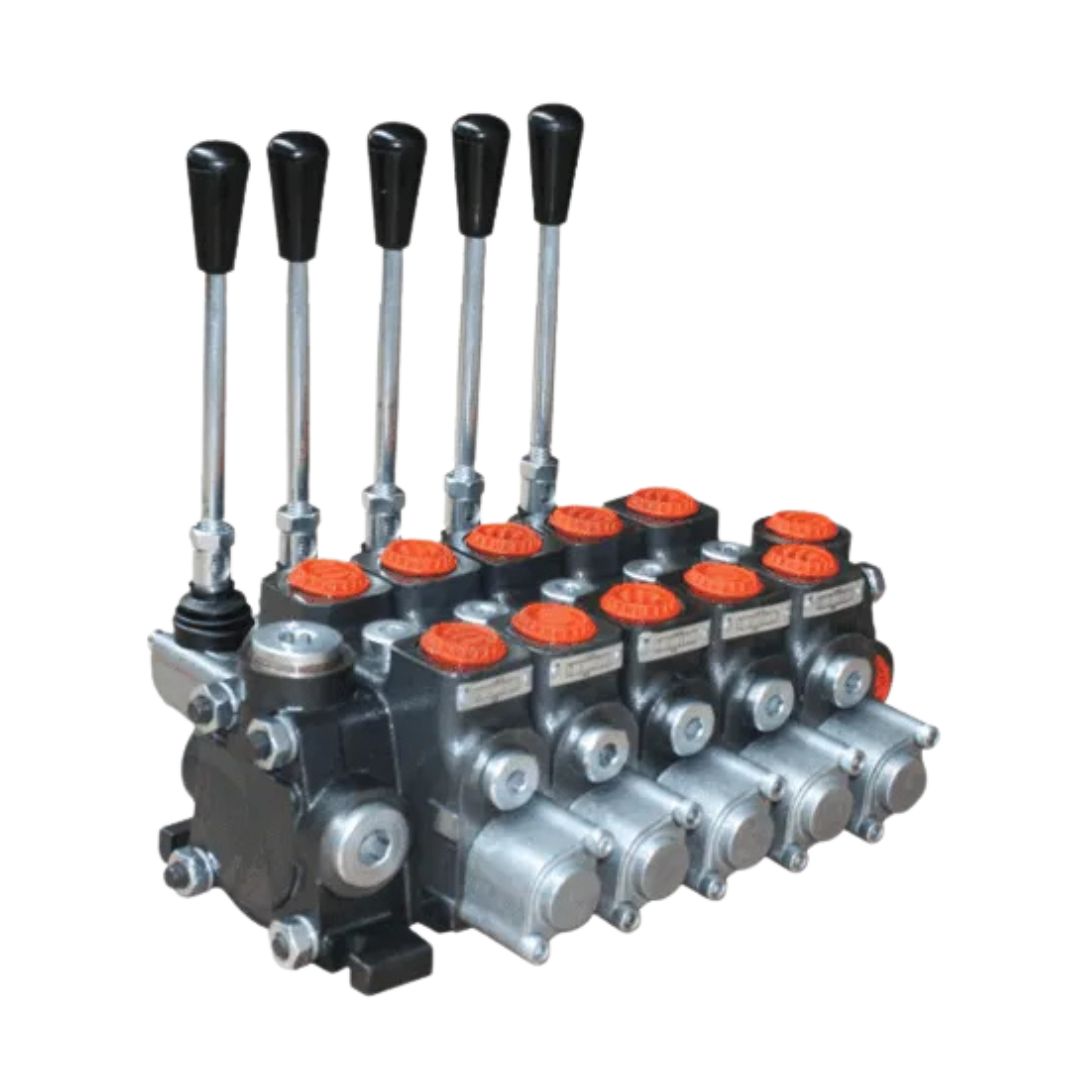

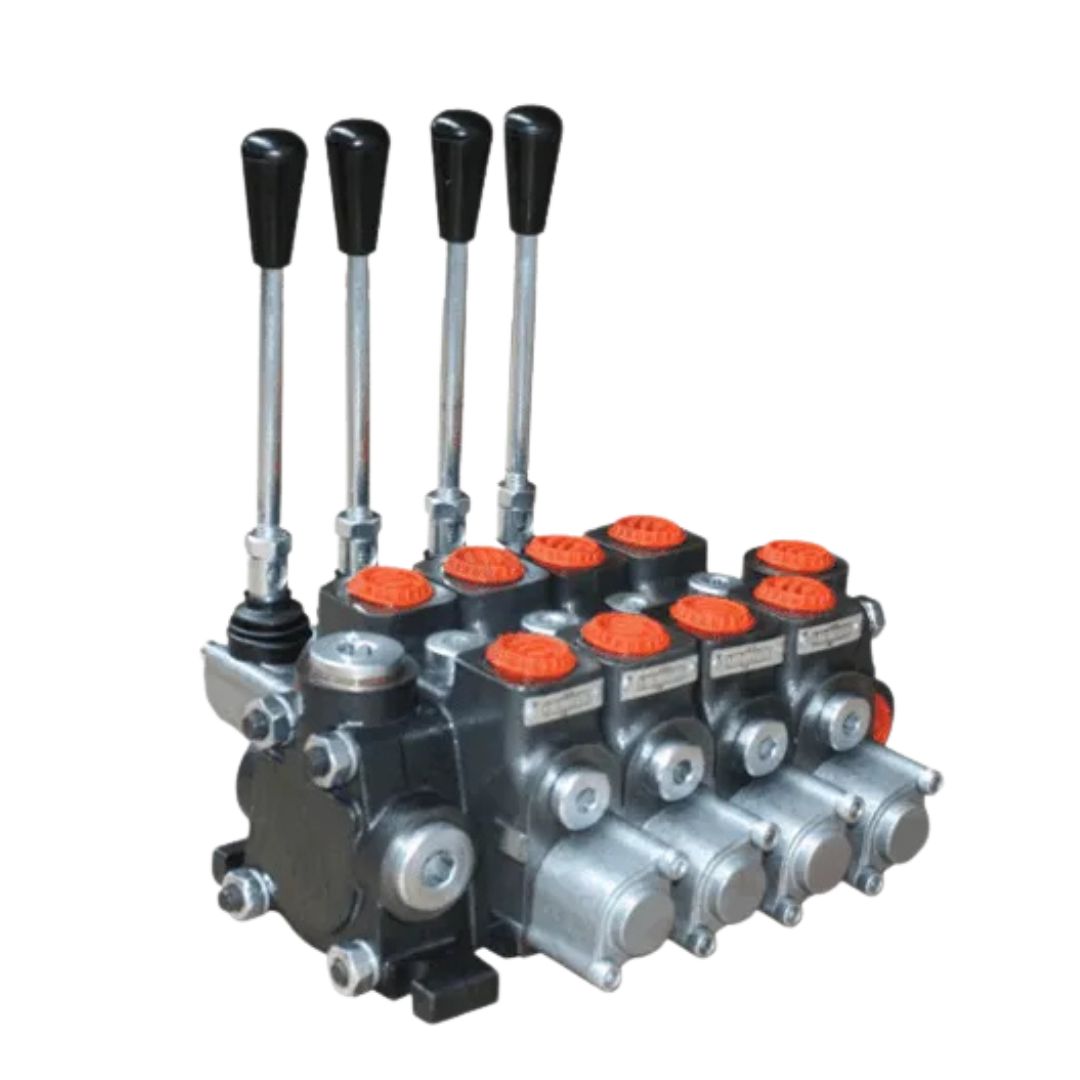

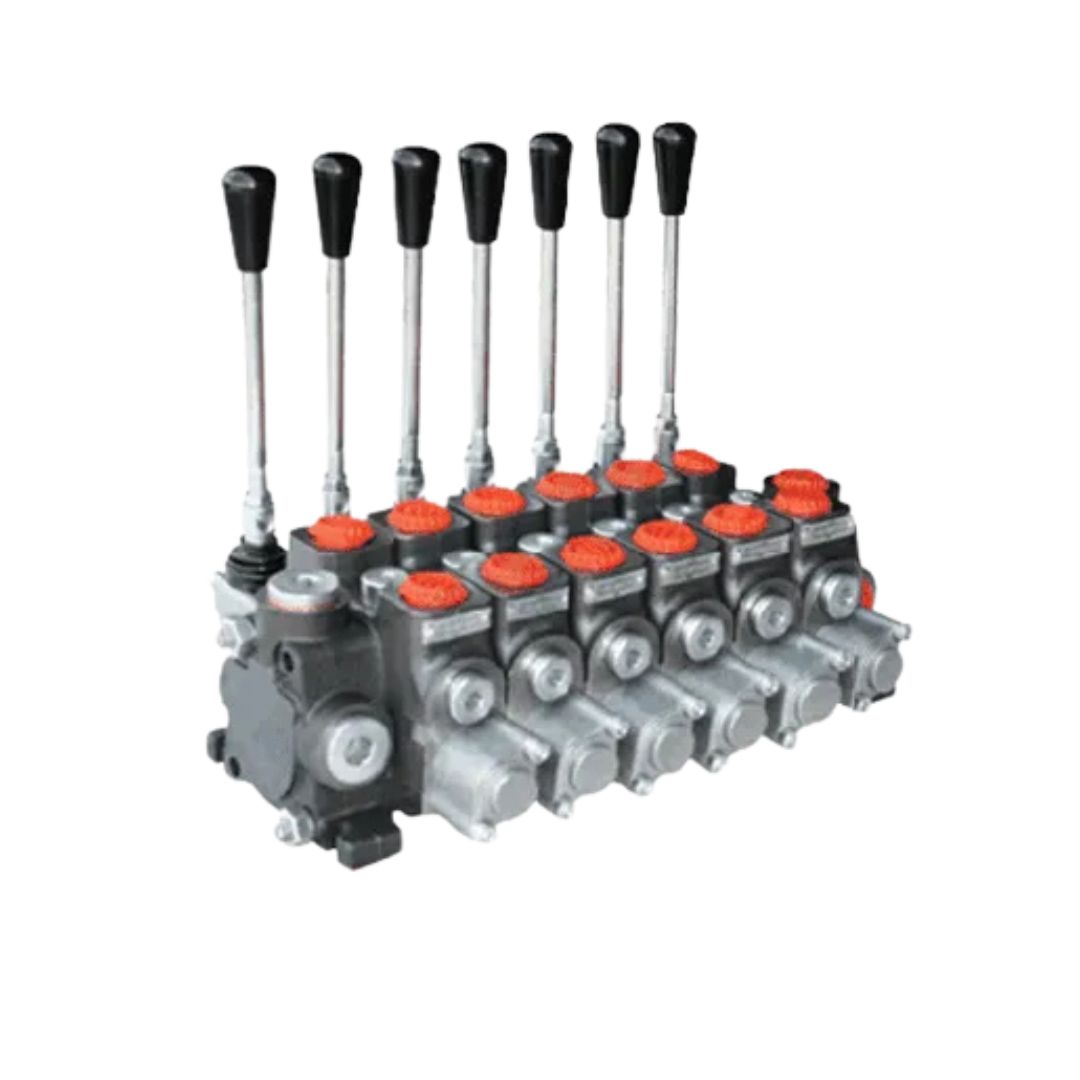

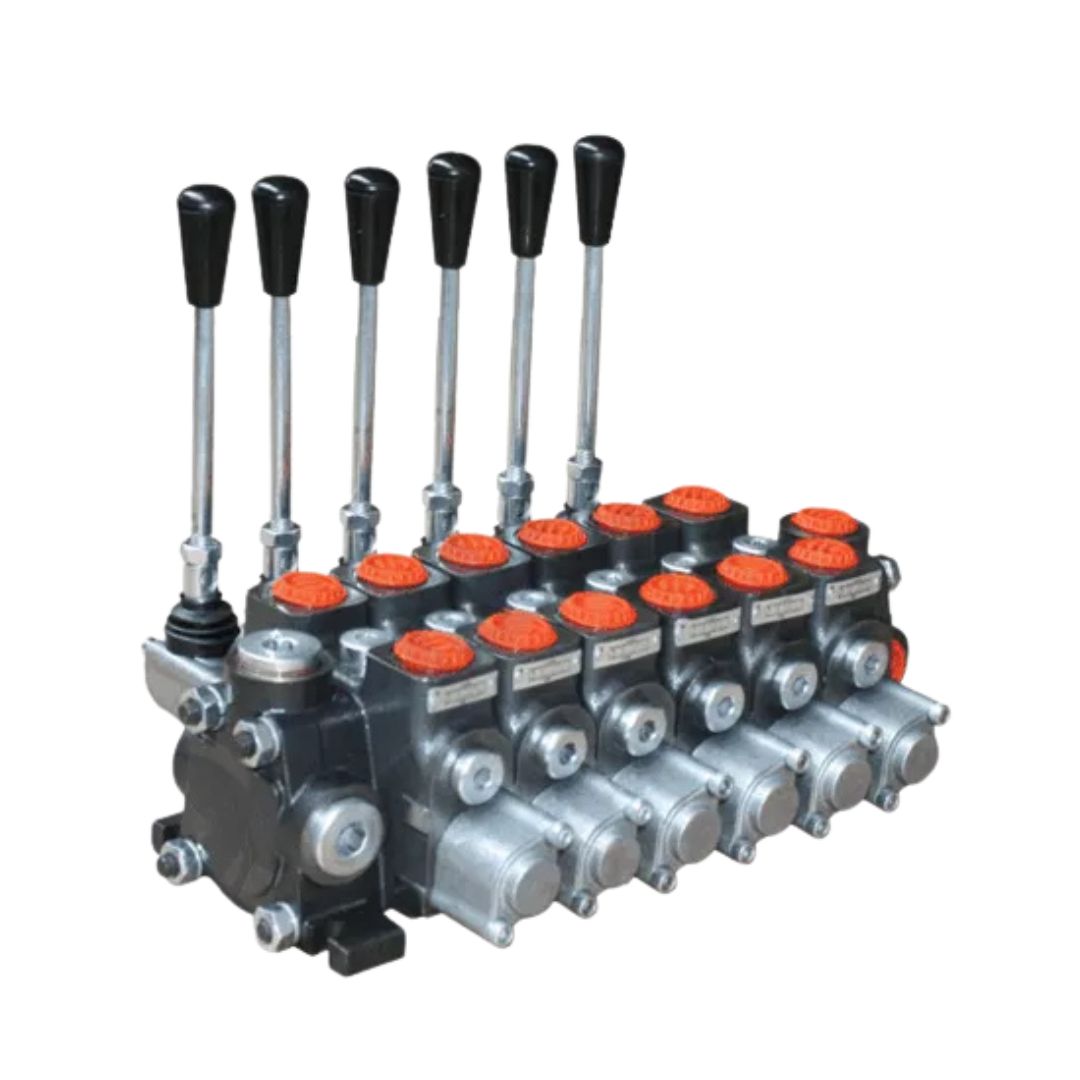

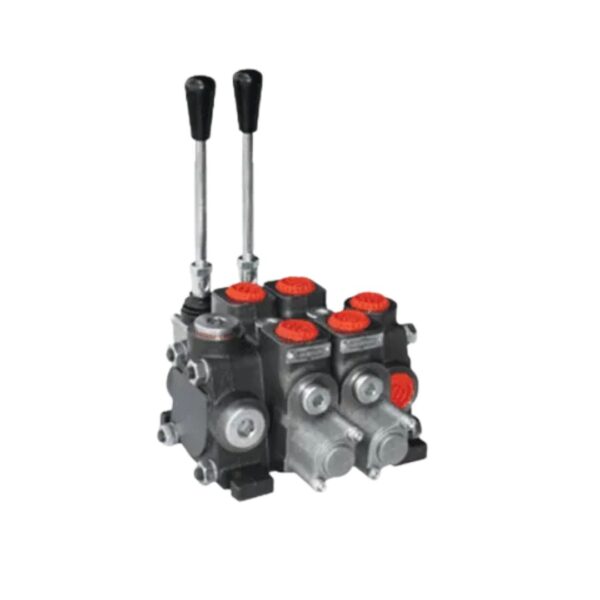

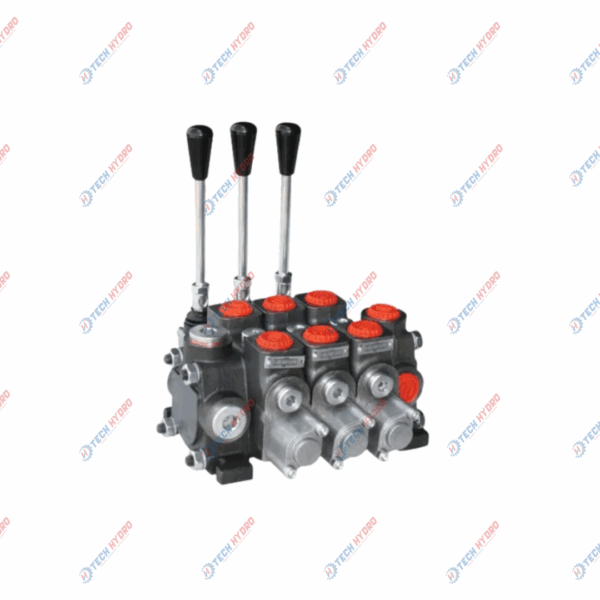

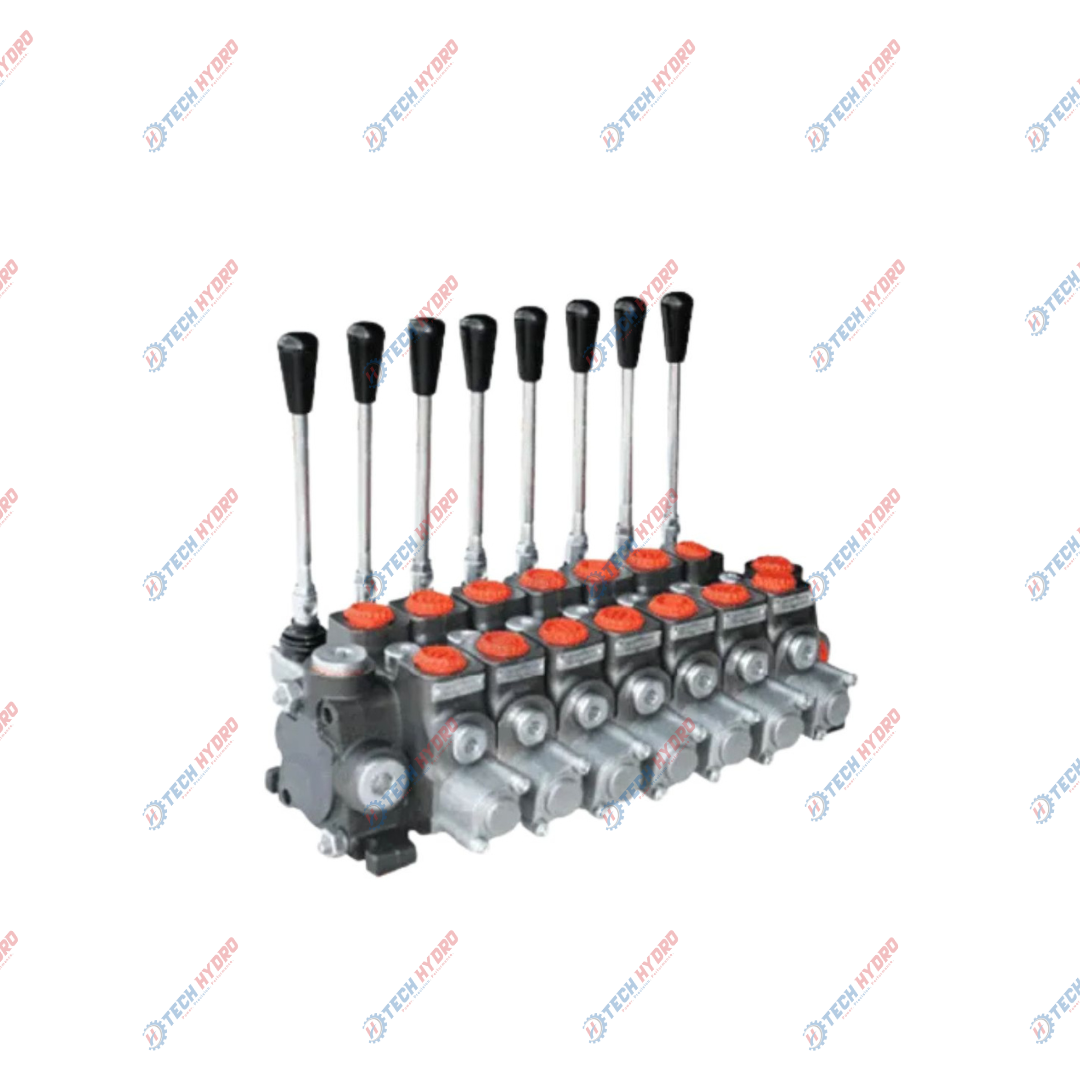

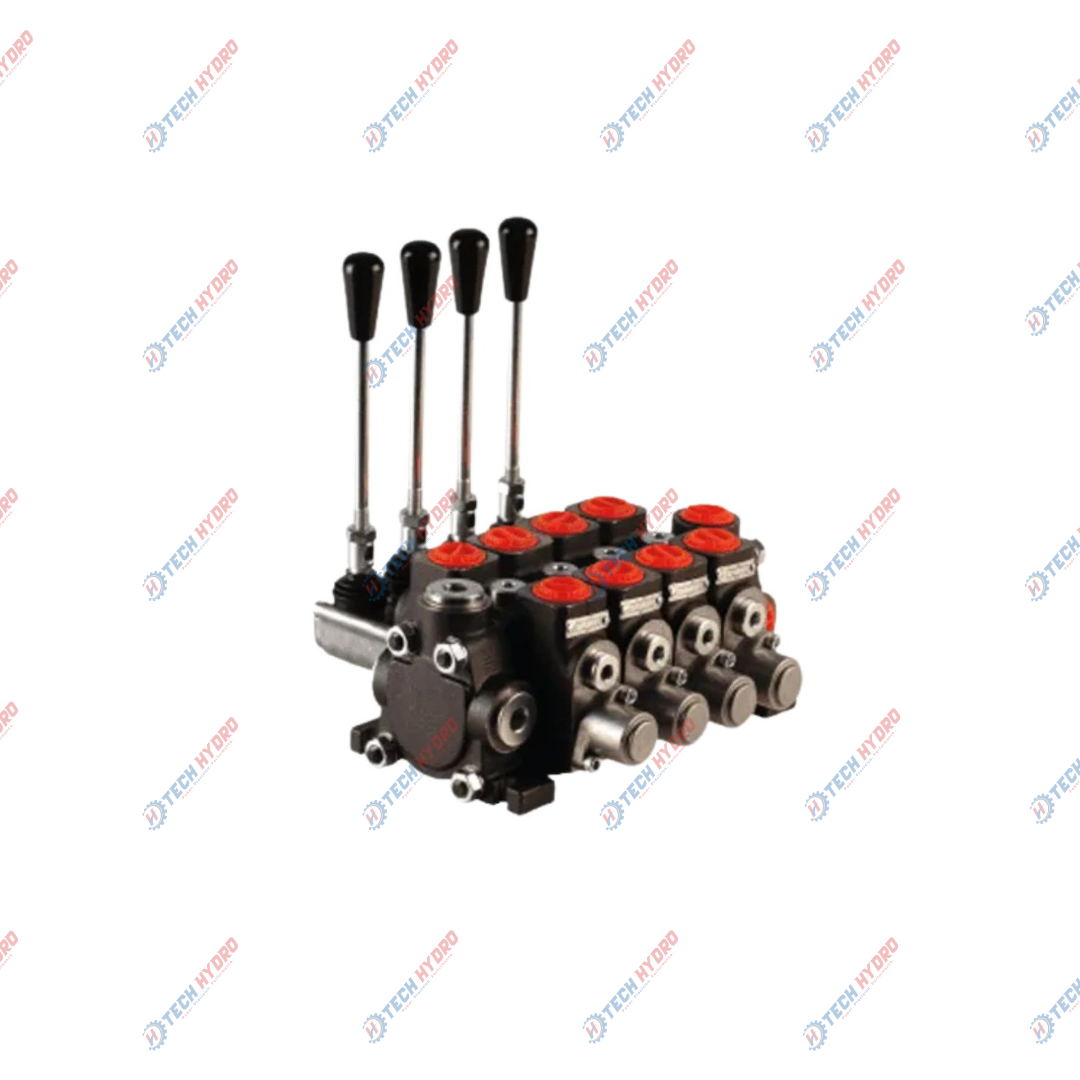

PC100 Series Sectional Directional Control Valves

Nominal flow rate: 80 liter/min (Max. flow 100 liter/min)
Max. Pressure: P: 210 bar, T: 50 bar, A-B: 250 bar
Spool type: Standard open center spool (A spool), different spool options
Number of spools: From 1 to 8
Leakage: 18 cm³/min at 120 bar (From A,B to T)
Fluid temperature range: -10 ^oC … +80 ^oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 10 to NAS 1638

Directional control valves are one of the core elements in a hydraulic circuit. They help directing the fluid to different components in the system.

Directional control valves perform only three functions:

1.   Stop fluid flow
2.   Allow fluid flow
3.   Change direction of fluid flow

There is a part called «spool» inside control valve which can be operated mechanically or electrically. The movement of the spool lets oil flow or blocks the oil flow in other words it controls the movement of fluid. Hidros provide sectional directional control valves with different capacities and spool control options such as hydraulic, pneumatic or with cables/joysticks.
