Directional Control Valves, Joystick Control

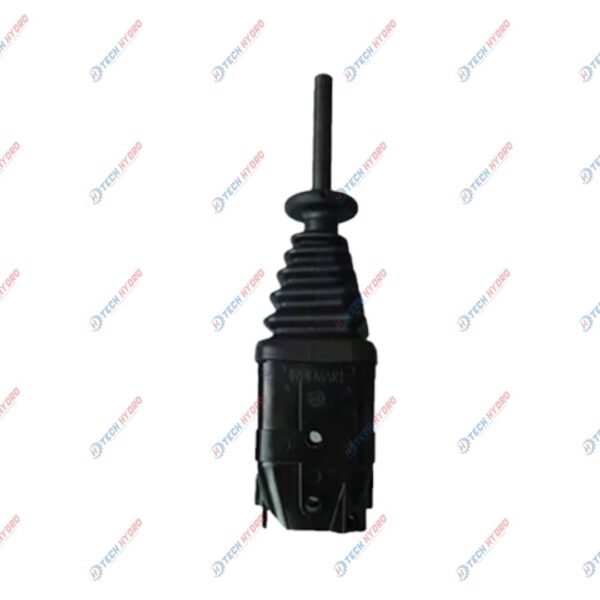

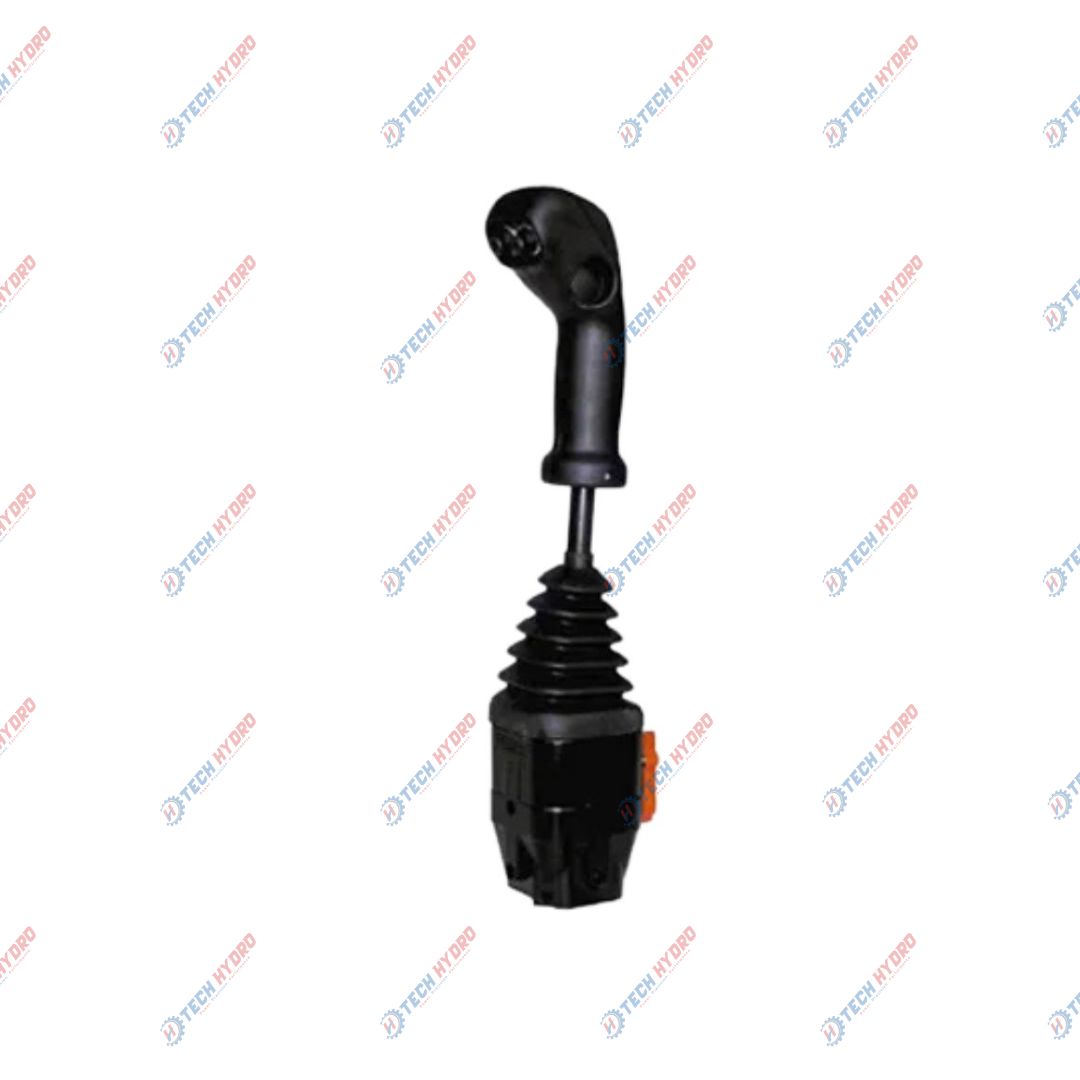

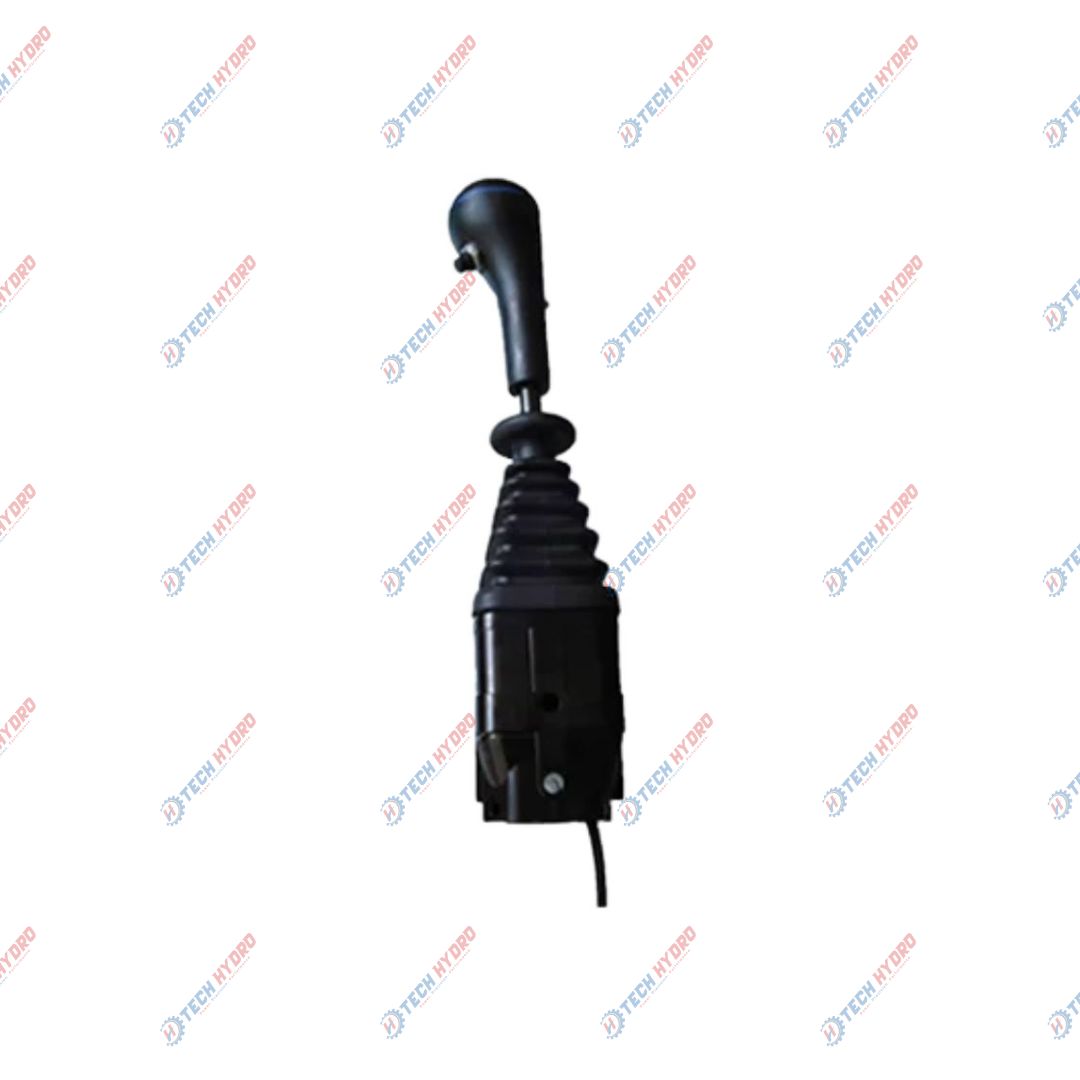

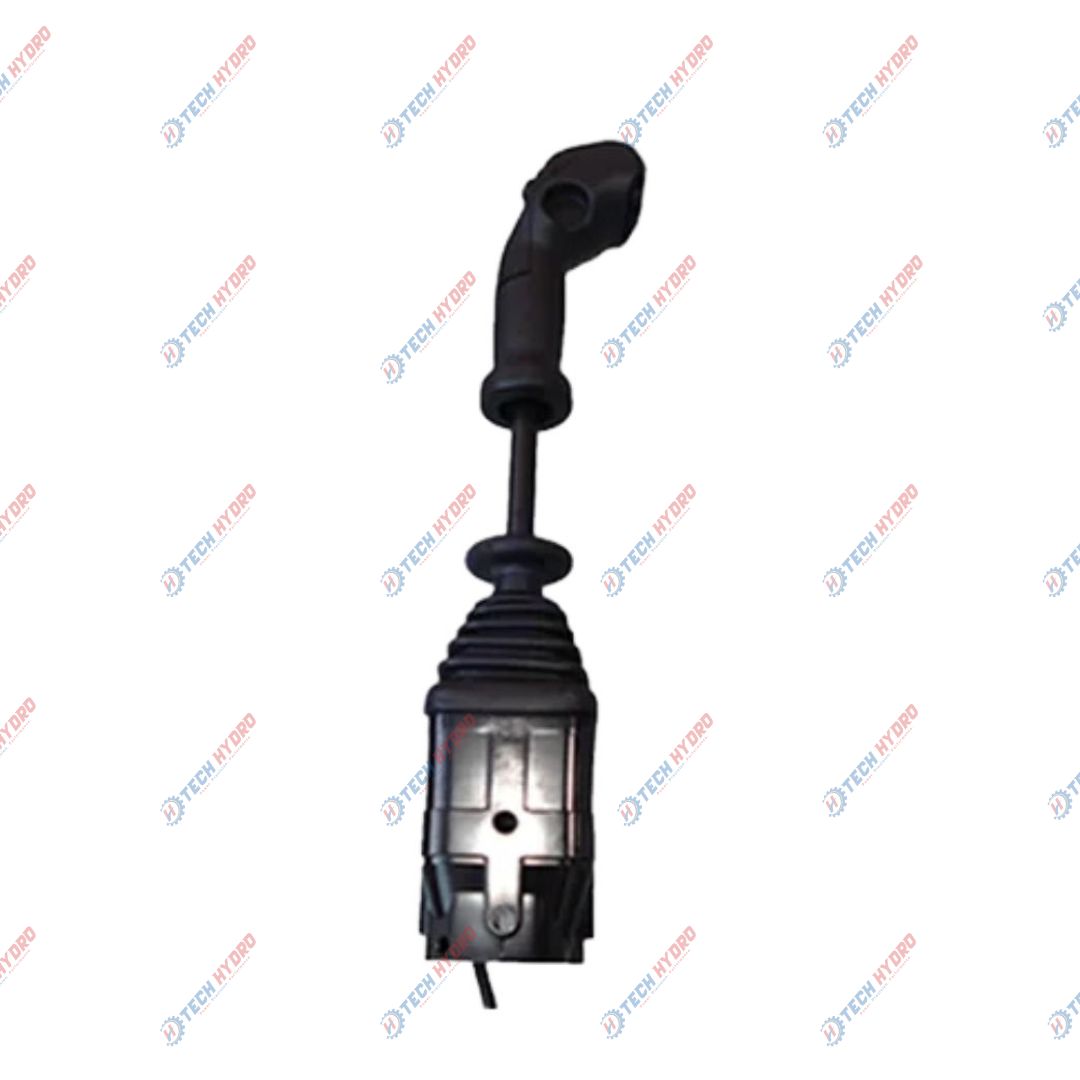

Joystick Control for Directional Control Valves
Features:
Hidros provide standard and heavy duty joysticks with compact design body suitable for directional control valves. The joysticks can be supplied together with high efficiency cables and widely used in agriculture applications.
|
Code |
Type |
Max. stroke |
Operating |
Cable code* |
Connection kit code |
Connection kit code |
|
ID-3320 |
Three buttons |
28 mm |
-30…+80 |
IT-731133 |
FK-212082 |
FK-212123 |
|
ID-3335 |
With safety lock |
28 mm |
-30…+80 |
IT-731133 |
FK-212082 |
FK-212123 |
|
ID-3336 |
Without lock |
28 mm |
-30…+80 |
IT-731133 |
FK-212082 |
FK-212123 |
|
ID-3369 |
Two buttons with lock |
28 mm |
-30…+80 |
IT-731133 |
FK-212082 |
FK-212123 |
|
ID-3371 |
Lateral lock |
28 mm |
-30…+80 |
IB-431216 |
FK-212082 |
FK-212123 |
|
ID-3375 |
One button with lateral lock |
28 mm |
-30…+80 |
IB-431216 |
FK-212082 |
FK-212123 |
|
ID-3389 |
One button with lock |
28 mm |
-30…+80 |
IT-731133 |
FK-212082 |
FK-212123 |
|
ID-3390 |
One button with lock |
28 mm |
-30…+80 |
IT-731133 |
FK-212082 |
FK-212123 |
|
ID-3398 |
Without handle with lock |
28 mm |
-30…+80 |
IT-731133 |
FK-212082 |
FK-212123 |
|
ID-6008 |
Two buttons with lateral lock |
28 mm |
-30…+80 |
IB-431216 |
FK-212082 |
FK-212123 |
|
ID-6009 |
Three buttons with lock |
28 mm |
-30…+80 |
IT-731133 |
FK-212082 |
FK-212123 |
|
* Cable lengths are available from 0.5 meter to 6 meter. |
||||||
