Diverter Valves, Hydraulic Inline Valves
IF 4 VIE Series 4 Way Hydraulic Diverter Valves
Port sizes: From BSP 3/8’’ up to BSP 3/4”
Max. flow: From 60 liter/min up to 120 liter/min
Max. pressure: From 250 bar up to 300 bar
DESCRIPTION
Hydraulic rotary diverter valves are used to divert the inlet flow towards different outlets. Normally open and normally closed models are available.
IF 4 series valves are used to reverse oil flow from two inlets to two outlets. They can be used to control double acting actuators or to reverse the rotation of hydraulic motors.
|
Code |
Type |
Max. flow |
Max. pressure |
|
V0970 |
IF 4 VIE 3/8″ |
60 |
300 |
|
V0980 |
IF 4 VIE 1/2″ |
90 |
250 |
|
V0990 |
IF 4 VIE 3/4″ |
120 |
250 |
|

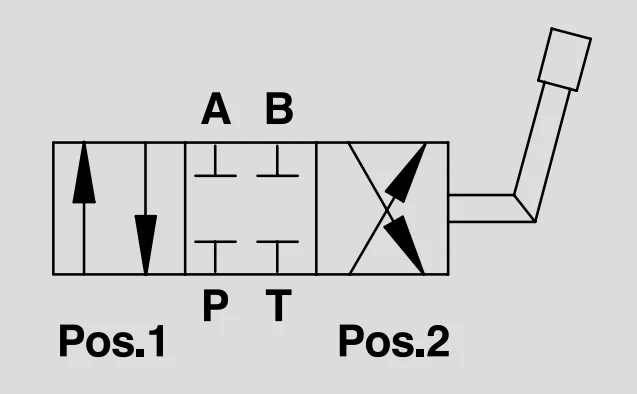

* Neutral position is closed center as standard. For open center models please contact us. |
|||
