Flow Dividers, Hydraulic Inline Valves
DFL Series Steel Flow Dividers
Max. flow: From 3 liter/min up to 150 liter/min
Rated pressure: 250 bar

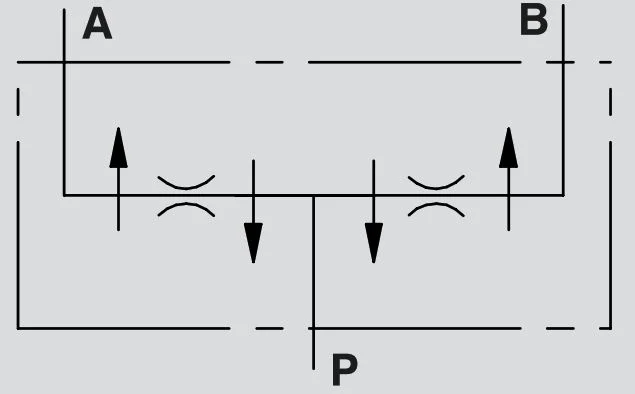

These valves divide the flow around % 50-50 and are used in the systems which fed from the same pump and operates two cylinders (not mechanically connected) that work simultaneously.
|
Code |
Type |
Min. flow* |
Max. flow* |
Working pressure |
|
V1020 |
DFL 1-3 |
1 |
3 |
250 |
|
V1021 |
DFL 3-6 |
3 |
6 |
250 |
|
V1022 |
DFL 6-10 |
6 |
10 |
250 |
|
V1023 |
DFL 10-20 |
10 |
20 |
250 |
|
V1024 |
DFL 20-32 |
20 |
32 |
250 |
|
V1025 |
DFL 25-40 |
25 |
40 |
250 |
|
V1026 |
DFL 40-60 |
40 |
60 |
250 |
|
V1027 |
DFL 60-80 |
60 |
80 |
250 |
|
V1028 |
DFL 80-100 |
80 |
100 |
250 |
|
V1029 |
DFL 100-120 |
100 |
120 |
250 |
|
V1030 |
DFL 120-150 |
120 |
150 |
250 |
|
* Flow capacity values refer to input P |
||||
