Diverter Valves, Hydraulic Inline Valves

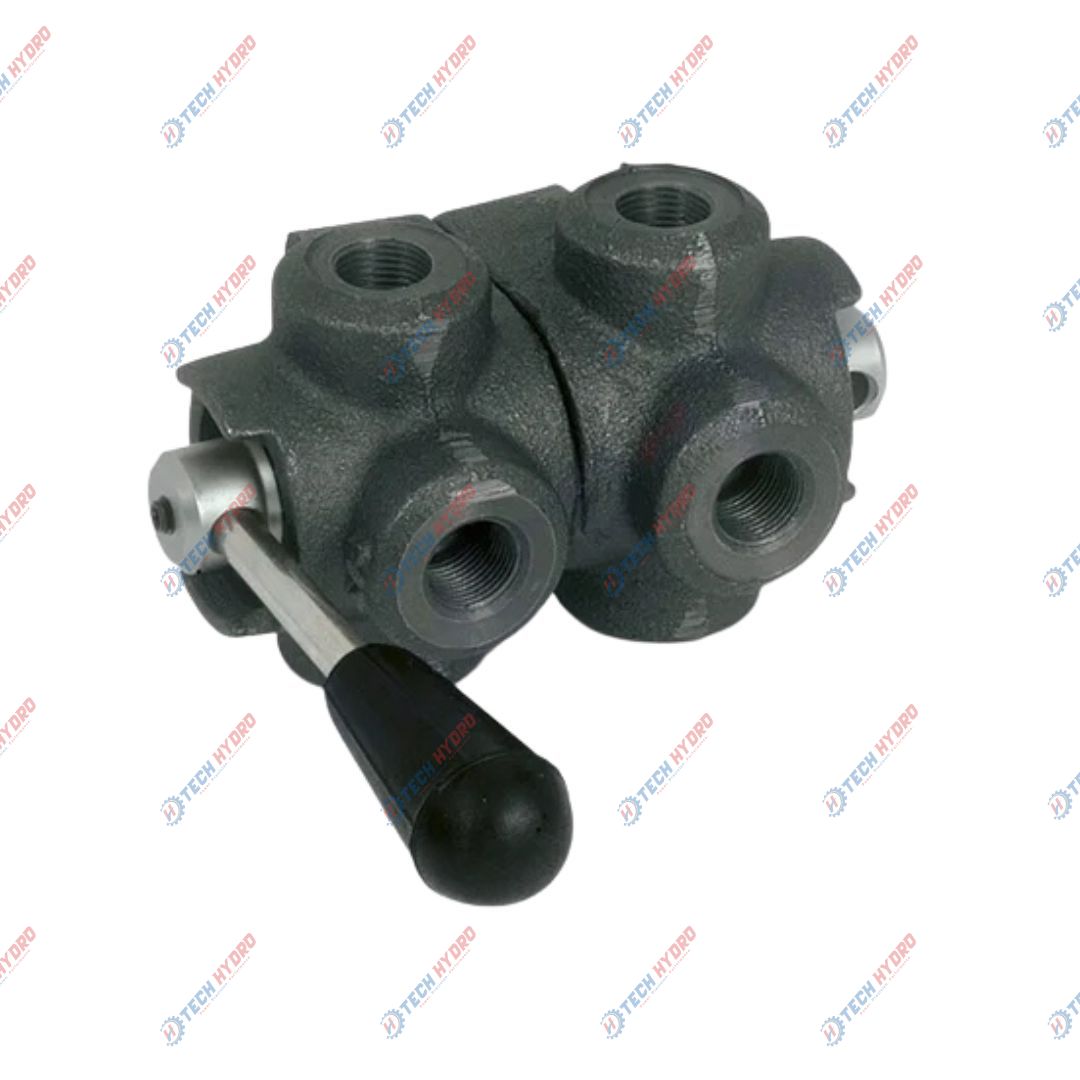

DF 6 VIE Series 6 Way Hydraulic Diverter Valves
Port sizes: From BSP 3/8’’ up to BSP 1”
Max. flow: From 60 liter/min up to 200 liter/min
Max. pressure: From 220 bar up to 300 bar
Hydraulic rotary diverter valves are used to divert the inlet flow towards different outlets. Normally open and normally closed models are available.

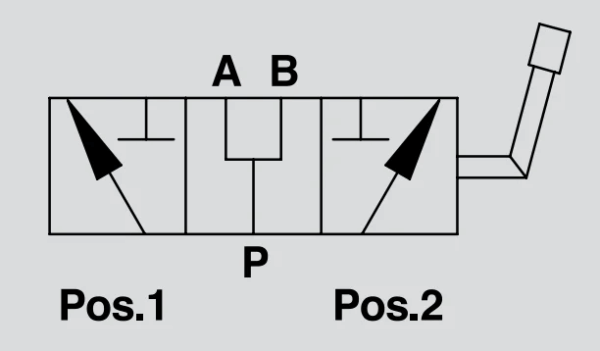

This valve is made up by two 3-way diverter valves coupled together. Each of the two valves is used to divert the inlet flow towards two ports.
|
Code |
Type |
Max. flow |
Max. pressure |
|
V0920 |
DF 6 VIE 3/8″ |
60 |
300 |
|
V0940 |
DF 6 VIE 1/2″ |
90 |
250 |
|
V0950 |
DF 6 VIE 3/4″ |
120 |
220 |
|
V0960 |
DF 6 VIE 1″ |
200 |
220 |
|
* Neutral position is open center as standard. For closed center models please contact us. |
|||
All original manufacturer’s names, part numbers and description are for reference purposes only and it does not imply that any Part listed is the product of these manufacturers
